does anyone know what i/o this is?

OldFoo · Post by **OldFoo** » Sun Jul 29, 2007 2:07 am

hey,

i just bought a naomi set up on ebay, and assumed it was a sega jamma i/o from the small pic.

but the seller just sent me some more up close and personal shots, and well, what is this:

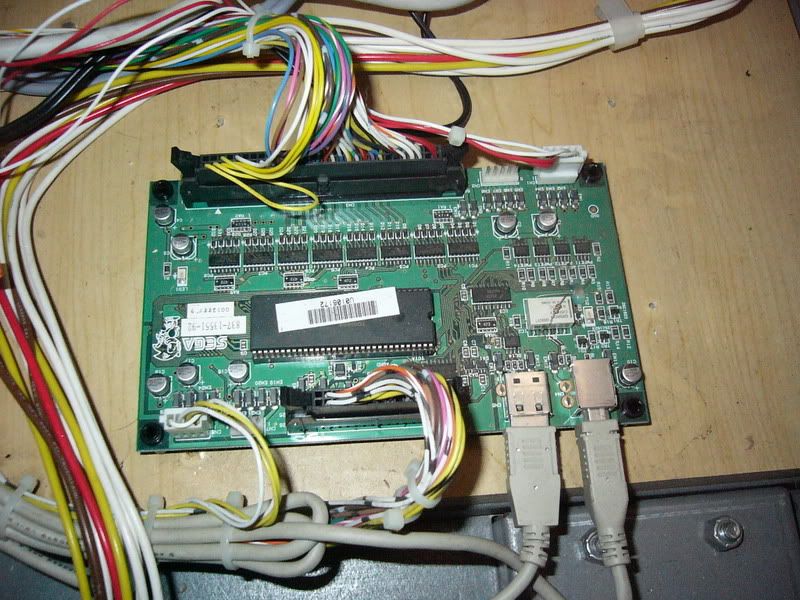

http://i99.photobucket.com/albums/l294/ ... 010002.jpg

:smt012

OldFoo · Post by **OldFoo** » Sun Jul 29, 2007 2:22 am

That is the Sega JVS I/O or standard, non-jamma I/O. This would work with any game, but it will not plug into a jamma harness.

The reason for this (at least in the beginning) was that Sega hardware had their own power supplies and the controls were hooked directly to this I/O board. Sega cabinets were/are connected the same way, just with different games and artwork. Afterwards, Sega developed the Jamma version for 'upgrade kits' that would work in any Jamma cabinet.

OldFoo · Post by **OldFoo** » Sun Jul 29, 2007 2:42 am

ok.

the lot i bought is coming with a power supply.

now from this io, all those wires coming off that large connector go to the controls im guessing right? so i should be able to wire them up to a jamma finger board no problem if so. same with the video and audio.

shouldnt be too bad.

OldFoo · Post by **OldFoo** » Wed Aug 08, 2007 4:40 am

yes you can wire up these to a jamma finger board . however if i remember right (it was about 18 months ago) i wired the controls only to the jamma finger board ,stopped using the dc power supply in my cabinet and used the naomi power supply . it took some rewiring here and there but it works well ... someone on here gave me the pinout for this i/o (60 pins) and i am still thanking them .ask around and im sure someone still has it. good luck

OldFoo · Post by **OldFoo** » Thu Aug 09, 2007 10:56 pm

the 60 pin connector is used for the control panel inputs, audio & video will come directly from the Naomi Mobo.

Don't forget you need to supply 12 & 5 V to the I/O to power it as well.

Wiring diagram is available at the end of the Naomi Cab owbers manual from the resources section of the main site.

John

OldFoo · Post by **OldFoo** » Sat Aug 11, 2007 6:38 am

My cab had that kind of connector in it, but the person i bought from took the io.

Now I have a capcom io, but all the original jvs wiring inside. Aside from buy ing the jvs io, is there a harness i could make to connect the jvs into and then into the capcom jamma io?

Also, I see no visible psu in the cab, but there is a plug that goes directly to the fan, and it does light the marquee and monitor... is this same plug what powers the jvs or is there another psu somewhere?

www.flickr.com/impulsze

OldFoo · Post by **OldFoo** » Sat Aug 11, 2007 7:58 pm

Considering the amount of work needed to convert all this wiring for the Capcom I/O, wouldn't it be better to just get the JVS version? Once you have it, just plug it right in! :smt047

OldFoo · Post by **OldFoo** » Sun Aug 12, 2007 6:07 am

joshua3dg wrote:Considering the amount of work needed to convert all this wiring for the Capcom I/O, wouldn't it be better to just get the JVS version? Once you have it, just plug it right in! :smt047

Well what I'd like to do, is wire some kind of harness which would allow the cab to be jamma, but natively jvs. I know down the road I'm going to get cps2 games which are jamma, but will also use it for naomi which is jvs.
